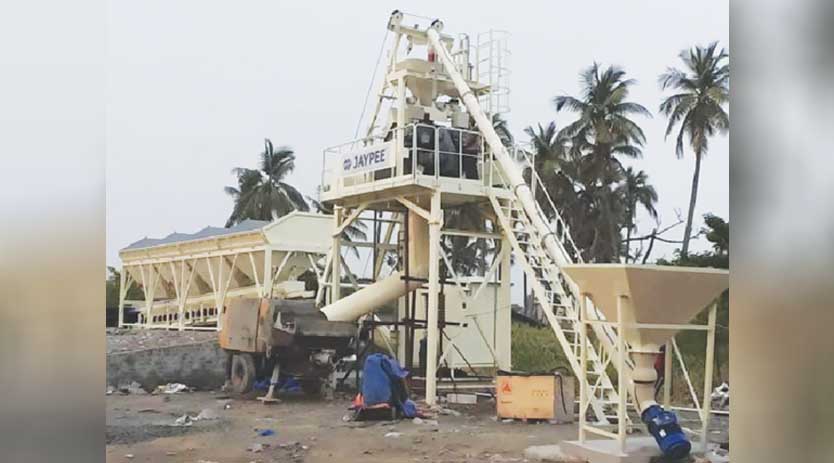

Automatic Batching Plant – 30 combines all  ingredients to produce concrete

Automatic Batching Plant – 30 combines all ingredients to produce concrete

March 11, 2023 12:27 pm

Every unit of a batching plant of concrete named ABP-30 can be customised to the customer’s specific requirements based on application.
Reasons that give Jaypee Batching Plant ABP-30 an edge over others
Jaypee® ABP-30 combines all ingredients like cement, sand, admixture & aggregates to produce concrete. Concrete pumps and transit mixers transport the final product to the job site. Our automatic batching plant-30 provides concrete with perfect consistency. It has four compartments to hold sand and different grades of gravel. The aggregates are held in horizontal in-line bins with pneumatically controlled gates. The gathering conveyor belt runs below where the weighing of the aggregates takes place. The aggregates are all weighed & monitored accurately by load cells before it is fed to the PAN mixer by a skip elevator. A planetary gearbox drives the PAN-mixer to mix cement brought through a screw conveyor, admixture, and water from a storage facility at the top.
The entire recipe can be monitored and controlled remotely. The load cells on each hopper measure and detect input, prompting the operator to determine whether to activate the control of stirring sand & gravel or start a screw conveyer to bring fly ash & cement to the PAN-Mixer.
Today’s construction industry increasingly requires consistency, homogeneity and short mixing times in industrial construction, giving our concrete batching plant an edge over others in indigenisation and longevity. ABP-30 is self-loading and suitable for construction sites where there is a scarcity of labour & prevailing underfoot conditions are only ideal for earthmovers.
Future scope for concrete batching plant ABP-30
We at Jaypee India Limited manufacture our autonomous Automatic Batching Plant of varying output capacities from 18-30 Cu-MS for road, infrastructure & metro applications. It has a kaleidoscope of optional features. Every unit of a batching plant of concrete named ABP-30 can be customised to the customer’s specific requirements based on application.
Salient features
• It has an optional cement silo with an “I” type load cell for input monitoring and a PLC control panel-based printer for government projects.
• Our batching plant for concrete is renowned for its easy operability and is designed to last under a range of environmental conditions, with low maintenance and consistent output, with the least possible downtime.
• The control panel can be housed separately in a control cabin and monitored remotely with an optional printer & USB backup to store recipes.
• Single Chassis; make its assembling and disassembling time no more than 2-3 days.
Why Us
We at Jaypee India Limited Constantly strive to build new sophisticated machines keeping ourselves up-to-date with the latest technology. We have our in-house, professionally qualified designing team to help us in our job, and we are known for timely deliveries to meet our client’s expectations.
